- Eight user-programmable switches
- Compact 2"'x 4" Panel
- Eight Circuits, four 35A and four 20A
- Waterproof, Solid State 125A Power Module
- Splash proof switch panel with Polycarbonate overlay faceplate
- RGB Backlighting provides unlimited color options
- Bluetooth interface with FREE Apple or Android App
- No Fuses or Bulky Relay box
- Program and control the system from switch panel pad or smart phone
- Time Delay Off function available for all circuits
- 100 User-selectable switch legends
You can't buy professional quality wiring, relays, fuses, breakers and switches for the price of a Switch-Pros Programmable Switch Panel, not to mention the amount of time yor money you'd save on the labor!
There's no need for all of the extra wiring for relays, fuses or breakers because the Switch-Pros Panel has solid state circuitry with it all built in. The programmable switch panel allows for almost unlimited combinations of power commands to operate all of the 12v power accessories on your car, truck or UTV. Easy to program through the panel or through Bluetooth with the free Switch-Pros app from your smart phone or tablet.
Switches can be programmed for:
Automatic Power-Up upon vehicle start up
On/Off or Momentary
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Memory Function
Every Master Switch can control up to 4 other switch outputs
Master Mode, with ability to turn multiple outputs On AND Off with one touch
Automatic Power-Up upon vehicle start up
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption
Additional Features:
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Specifications
Switch Panel Specs:
Backlighting: Unlimited programmable RGB color options
Size: Switch Panel enclosure measures 4” L x 2” W x .375” H
LED On/Off Switch indicator:Orange

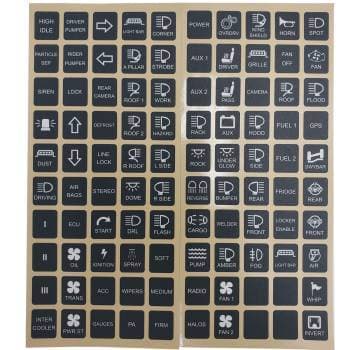

Switch Label:100 User Selectable Legends Included
Power Module Specs:
Outputs: 17, 4 rated @ 35A, 1 rated @ 30A, 11 rated @ 15A, 11 rated @ 2A
Max Amp Rating 1550A maximum rating
Waterproof Yes
Solid State: Yes
Size: 7”L x 3.5”W x .5”H (excluding connectors)
Temp Rating: Underhood rated -40°C to 125°C

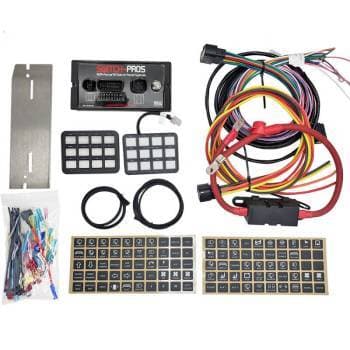

Included with kit:
11’ of Communication Cable between Switch Panel and Power Module
Color Coded Output wires

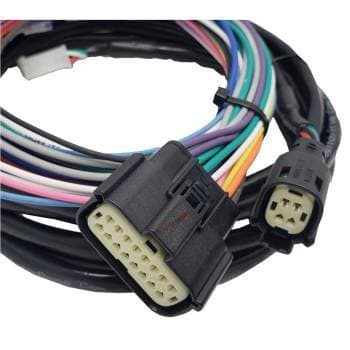

Wire harness with Waterproof, sealed automotive grade connectors
Power Cable with 125A inline fuse
